Hydraulic Injection Moulding Machines — FUTECH

FORZA Series

Futech’s latest high-performance ram-type clamping servo hydraulic injection moulding machines, ranging from 60 to 410 tons. Equipped with a high-speed servo system for high production output, energy efficiency, and precision moulding.

Request a Quote
60–410T
Clamping Force
Servo
Hydraulic System
Ram Type
Direct Locking
High Speed
Production Output

Engineered for Performance

The FORZA Series combines a precision clamping unit with a high-speed injection unit, delivering faster cycles, lower energy consumption, and consistent part quality for demanding production environments.

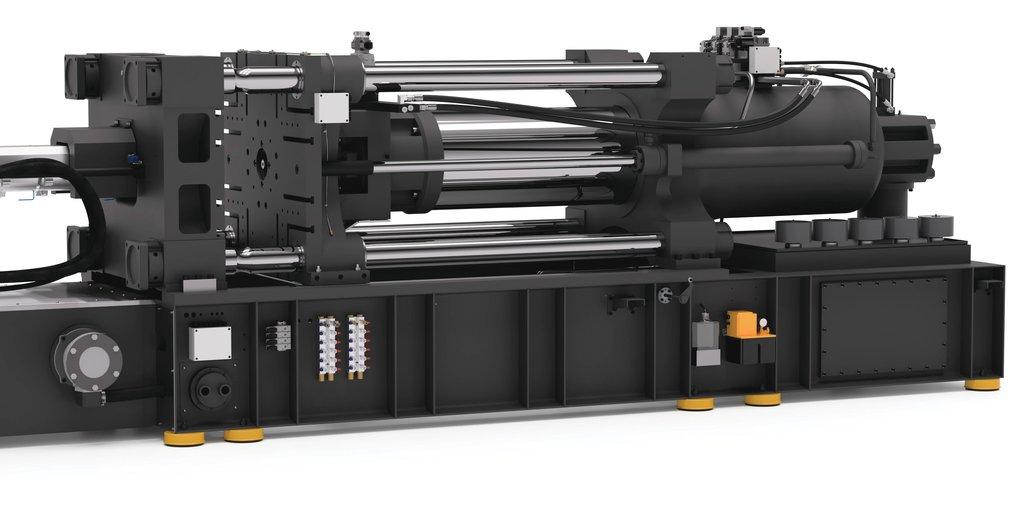

FORZA Series clamping unit with direct locking system

Clamping Unit

  • Direct Locking
  • Smaller Footprint
  • Larger Tie-Bar Distance
  • T-Slot Platen
  • Quick Mould Change
  • Perfect Parallelism
  • Low Maintenance Cost
  • Easy-Clean Heat Exchanger

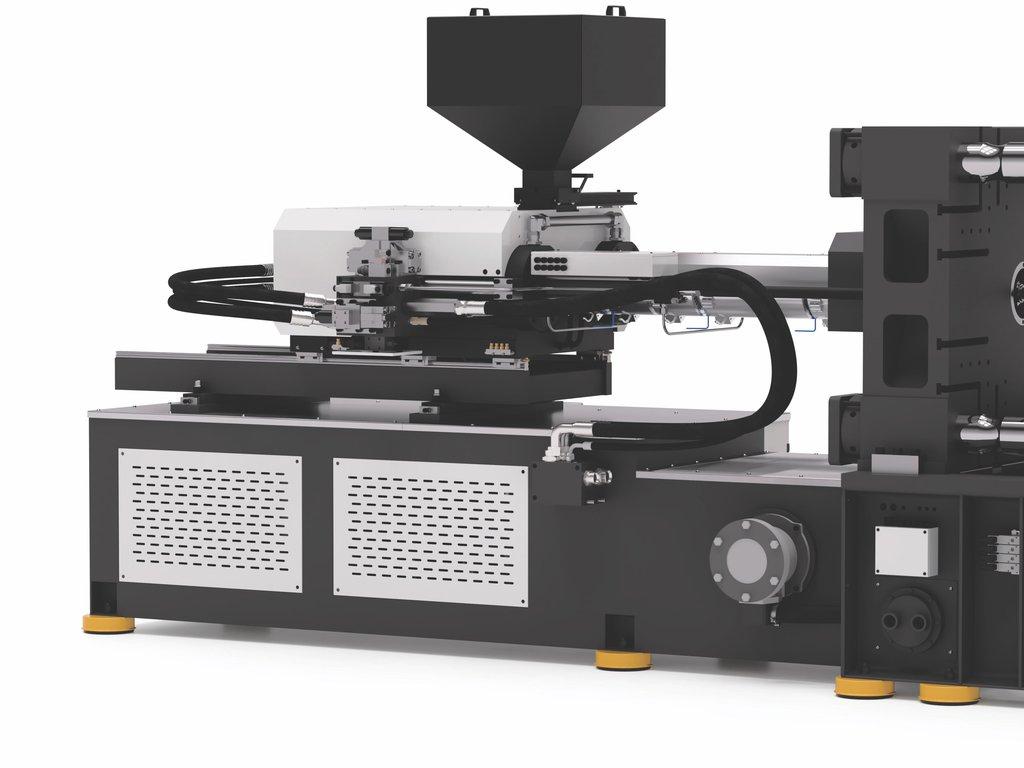

FORZA Series injection unit with linear guide rails

Injection Unit

  • High-Speed Plasticizing
  • Multiple Injection Unit Options
  • High-Precision Linear Guide
  • Bigger Shot Size
  • Hybrid Servo System
  • Low Energy Consumption
  • High-Accuracy Control

Key Features

Purpose-built details that improve safety, cleanliness, uptime, and moulding precision.

FORZA Series sliding top cover for dust protection

Sliding Top Cover

The sliding cover offers dust protection and improves overall machine safety. Dust protection in turn extends hydraulic oil and seal life.

FORZA Series injection unit with linear guide rails

Injection Unit with Linear Guide Rails

Friction-less linear guide rails provide precise, high-speed, and accurate injection. Stainless steel covers below the injection unit improve overall machine cleanliness.

FORZA Series adjustable tray and stainless steel covers

Adjustable Tray & Stainless Steel Covers

The adjustable taper tray suits all your mould needs. Stainless steel covers provide extra hygiene and cleanliness, suitable for food-grade and medical applications.

FORZA Series purge safety guard

Purge Safety Guard

The safety guard provides extra protection during barrel purging and cleaning. The upturning design makes switching between maintenance and production easier.

FORZA Series heat exchanger with fins

Heat Exchanger with Fins

Specially designed heat exchanger with high heat transfer rate provides adequate cooling and keeps the machine cool during 50°C summers, extending machine and hydraulic oil life.

FORZA Series easy slide hopper

Easy Slide Hopper

The bearing design makes moving the hopper effortless. Even a fully loaded hopper dryer can be moved, shifted, and adjusted with a push of a finger.

Industries & Applications

FORZA Series machines are built for high-volume, precision-sensitive plastic moulding across diverse sectors.

Plastic Furniture Medical Products Food Packaging Food Containers Household Goods Electrical Parts Consumer Products Thin-Wall Packaging High-Speed Injection Moulding Industrial Components

Frequently Asked Questions

What is the FORZA Series injection moulding machine?
The FORZA Series is a high-performance ram-type clamping servo hydraulic injection moulding machine range from 75 to 410 tons. It is designed for manufacturers seeking high production output, energy efficiency, precision moulding, and reduced maintenance costs.
What industries can use FORZA Series injection moulding machines?
FORZA Series machines are suitable for plastic furniture, medical products, food packaging, household goods, electrical parts, consumer products, thin-wall packaging, high-speed injection moulding, food containers, and industrial plastic components.
What is the clamping force range available in the FORZA Series?
The FORZA Series is available from 60 to 410 tons clamping force, covering a wide range of small and medium-sized plastic injection moulding applications.
What are the advantages of the direct locking clamping system?
The direct locking system provides excellent platen parallelism, high mould safety, high accuracy, faster mould changeover, larger tie-bar spacing, reduced machine footprint, lower maintenance requirements, and improved mould protection.
Is the FORZA Series energy efficient?
Yes. The machine uses an advanced servo hydraulic system and optimized hydraulic design to reduce electricity consumption while maintaining high productivity and fast cycle times.
Why is the FORZA Series suitable for medical and food-grade moulding?
Stainless steel covers, easy-clean design, improved machine cleanliness, and precise process control make the FORZA Series suitable for medical, food packaging, and hygiene-sensitive applications.
What injection unit features improve productivity?
The FORZA Series offers high-speed plasticizing, larger shot sizes, multiple injection unit options, linear guide rail technology, and hybrid servo control to achieve faster cycle times and higher production output.
Does the FORZA Series support quick mould changes?
Yes. The machine features T-slot platens, larger tie-bar distance, and a direct locking design that enables faster mould installation and quicker production changeovers.
What makes the FORZA Series suitable for high-volume manufacturing?
High-speed plasticizing, precision injection control, energy-efficient servo hydraulics, and low maintenance requirements make the FORZA Series ideal for continuous high-volume production environments.
Why choose Futech FORZA Series injection moulding machines?
Futech FORZA Series machines combine energy efficiency, direct locking technology, high production output, low maintenance costs, and reliable long-term performance for modern plastic manufacturing operations.

Interested in the FORZA Series?

Talk to our team about the right tonnage and configuration for your application.

Request a Quote Call Sales: +91-82828 25111
